FACE-DRIVEN SOLUTION

Empower With 3D Imaging

Experience precise imaging of dental and facial structures with RAYSCAN α 3D. Our equipment is equipped with essential features to achieve personalized treatment plans and aesthetic results while prioritizing patient comfort and safety. Our technology ensures thorough scans with minimal radiation exposure, helping doctors enhance patient care and transform smiles

  • 3D Face Scanner
  • CBCT
  • Intraoral Scanner

One-stop solution for 2D images & 3D scans

Book A Demo
OPTIMAL FOV SIZE FOR 3D DIAGNOSIS

FOV 10×10 max. (Predefined FOV)

RAPID RECONSTRUCTION TIME

20 sec HD Scan Ability to quickly review CT images and dramatically cut down on chair time.

HIGH RESULUTION

100 μm (FOV 9×5), 160 μm (FOV 10×10), Accurate results instill, confidence in your diagnosis

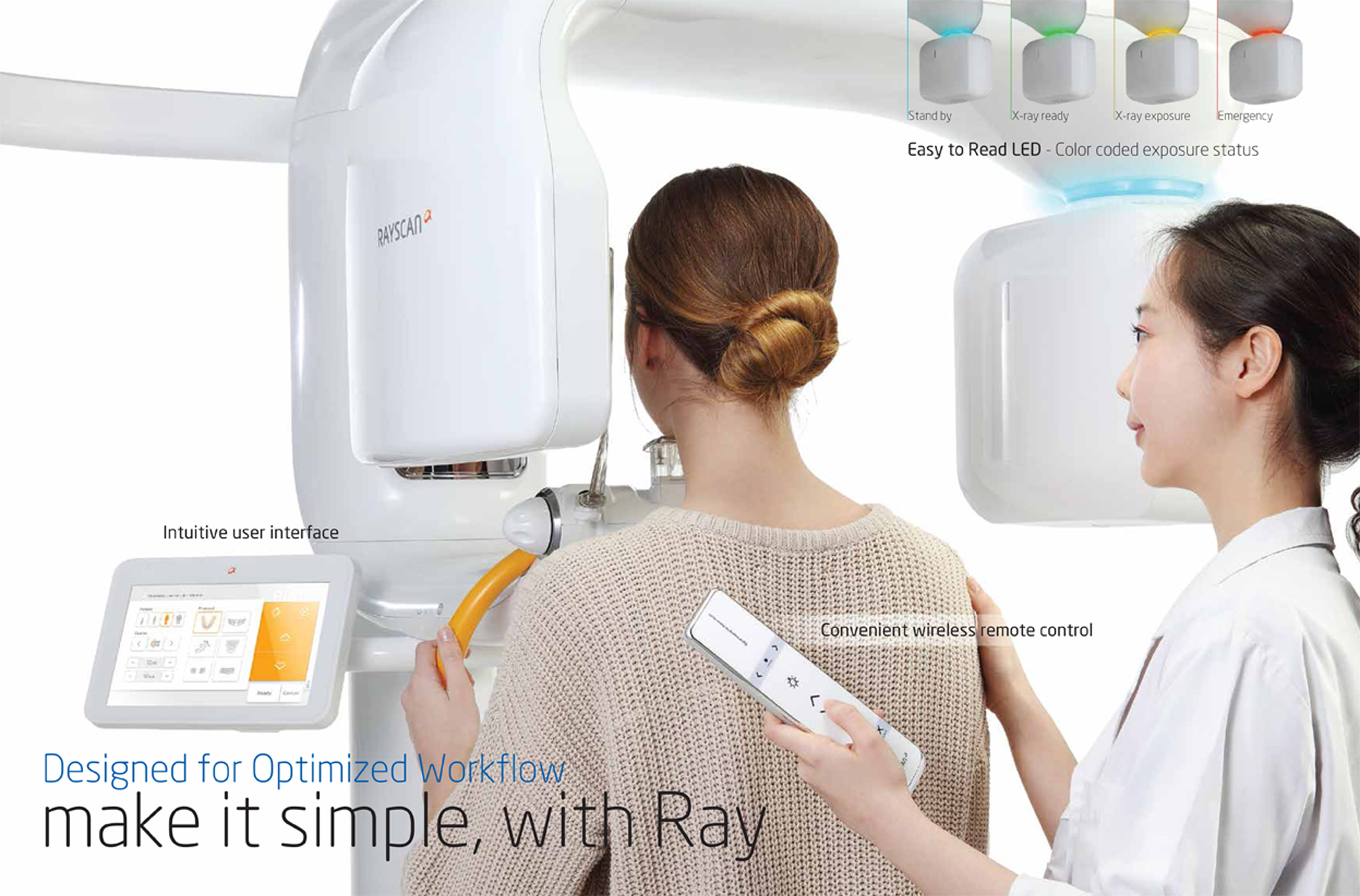

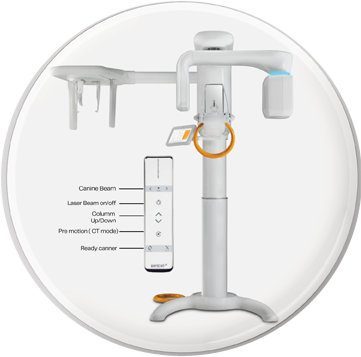

Remote Control

Improved Patient Positioning & Operator Ergonomics

Excellent image quality through advanced technology

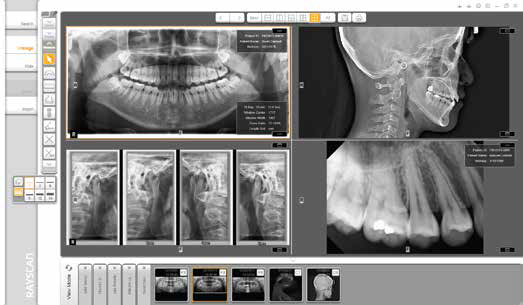

2D Imaging Software
Key Features
  • Integrated dental image management
  • Touch environment considered simple UI
  • 16 bits full imaging system with DICOM 3.0
  • Supports TWAIN-compliant input devices

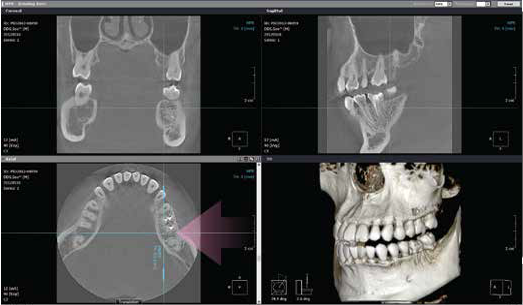

OnDemand 3D
Key Features
  • Panoramic image & Cross-Sectional image
  • Excellent 3D image with shading technology
  • Nerve canal drawing & implant simulation
  • DICOM print & CD/DVD burning

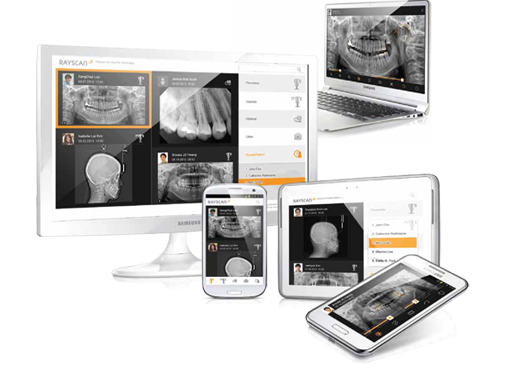

Web Viewer
Key Features
  • Convenient use in tablet & smart phone
  • Optimal viewing experience by responsive web design
  • No need to install software
Book A Demo

Specifications of RAYSCAN α

Type Panoramic, Cephalometric, Cone Beam CT
Patient positioning Standing (wheelchair accessible)
Focal spot 0.5mm
Tube voltage 60~90kVp
Tube current 4~17mA
3D (Expert 3D) | P (Expert)
Type CBCT Panoramic
FOV / Image size 10x10cm, 9x5cm* Max. 15cm
Voxel size 100~300µm -
Scan time 14sec Max. 14sec
Cephalometric (Option)
Type SC (Scanning Ceph) OCL / OCS
Image size Max. 26x22.5cm Max. 33x33cm / 30x25cm
Exposure time 3.8~19.8sec 0.3 / 0.5sec / 0.8sec
